Full Automatic Expanded Metal Mesh Machine JQ25-6.3 1.0 Mm Thickness

  • Full Automatic Expanded Metal Mesh Machine JQ25-6.3 1.0 Mm Thickness
Lugar de origen Hebei, China
Nombre de la marca DIAOZHUO
Certificación CE ISO9001
Número de modelo DZ-JQ25-6.3 DZ-JQ25-25 DZ-JQ25-45 DZ-JQ25-63 DZ-JQ25-100 DZ-JQ25-125
Cantidad de orden mínima 1set
Precio variable
Detalles de empaquetado woodencase y las bolsas de plástico
Tiempo de entrega 20-30 días
Condiciones de pago L / C, D / A, D / A, D / P, T / T
Capacidad de la fuente 10sets por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material acero y molde del acero ALIMENTACIÓN alimentación automática
Seguridad la máquina cubrió seguridad ingenieros disponible para mantener la maquinaria en ultramar
Grueso 1,0 milímetros Anchura 500m m
Resaltar

expanded wire mesh machine

,

high speed expanded metal machine
Deja un mensaje
Descripción de producto

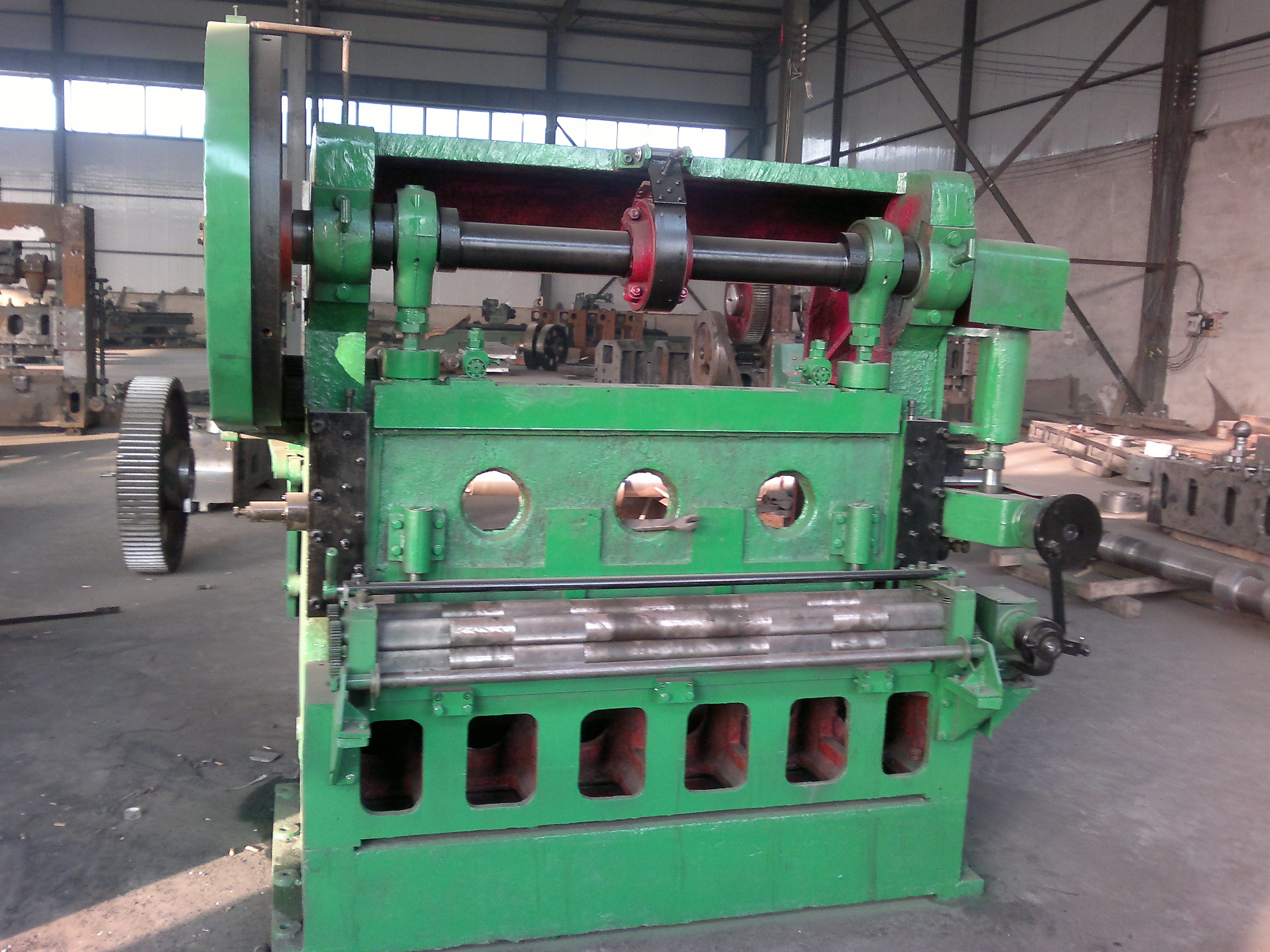

Full Automatic Expanded Metal Machine JQ25-6.3 Max Length Of Mesh 20



Expanded metal machine is also called steel mesh punching and shearing machine, diamond mesh machine, stretch mesh machine, round hole mesh machine, special-shaped mesh punching net machine. Can be stamped into a variety of products with a variety of metal sheets.



All products are produced and processed by advanced computer technology. The hole types are diverse and the arrangement is flexible. In the years of production practice, we have accumulated rich experience in the production and processing of steel mesh, which can cut, bend and edging products. Deep processing such as surface treatment.



The expanded mesh is mainly used in light industry, civil engineering construction cement, mechanical equipment protection, highway fence stadium fence, road green belt protection, etc.





After-sale services:



1.Guarantee period three years since the date of finishing commission.

2.Customer services:24*7 online services.

3.No man factor,exchange the accessory parts for free.If the components break down by mistaken operation,we supply only material cost price.

4.We offer spares free,these spares can be enough for using one year.

5.Can send engineer abroad if needed.



Techincal parameter

Type JQ25-6.2T JQ25-16T JQ25-25T JQ25-40T JQ25-63T JQ25-100T
Material thickness(mm) Max1.0 Max1.0 Max1.5 Max3.0 Max4.0 Max6.0
Net Width(mm) Max600 Max1000 Max1250 Max1500 Max1500 Max2500
Punching Times/Min 300 160 160 80 67 55
Feeding Distance(mm) 0-10 0-10 0-10 0-10 0-20 0-20
Length of Mesh(mm) Max20 Max25 Max40 Max80 Max200 Max200
Motor Power( KW) 2.2 3.2 4.0 11 11 15
Weight( T) 0.95 2 3 6 10 12
Overal Dimension(mm) 950x570x1780 1800x1320x1550 1940x1600x2010 2870x990x2140 2400x3500x2300 3600x2500x3000



we also can make the machine according to the client's requirment
