Hinged Joint Cattle Grassland Fence Machine Blue Color 2400mm Width Steel
| Lugar de origen | Hebei, China |
|---|---|
| Nombre de la marca | DIAOZHUO |
| Certificación | CE ISO9001 |
| Cantidad de orden mínima | 1 sistema |
| Precio | variable |
| Detalles de empaquetado | woodencase y las bolsas de plástico |
| Tiempo de entrega | 20-30 días del trabajo |
| Condiciones de pago | L/C, T/T, D/P |
| Capacidad de la fuente | 6-8 sistemas por mes |
Éntreme en contacto con gratis las muestras y los vales.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Motor | 5.5KW | Effeiciency | 45r/min |
|---|---|---|---|
| Diámetro de la guita | 1.8-2.5m m | Diámetro lateral | 2-3.5m m |
| anchura de la red | 1422/1652/1880/2000/2400m m | Peso | 3.5t-4.5t |
| Resaltar | field fence machine,farm fence machine |
||
Descripción de producto
hot sale in Africa grassland fence machine
Introuduction:

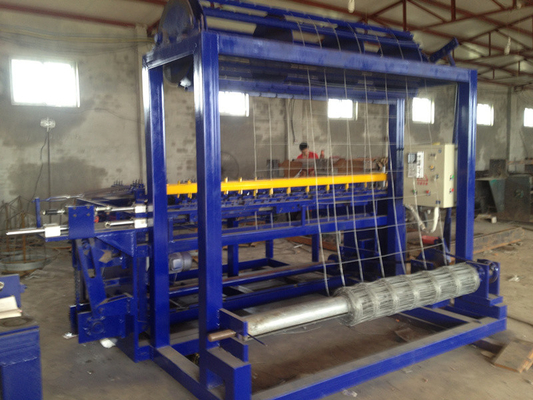

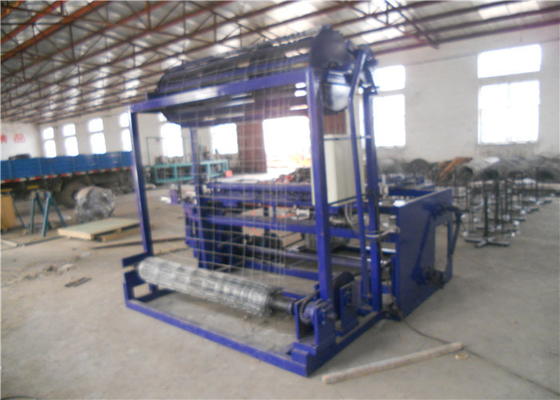

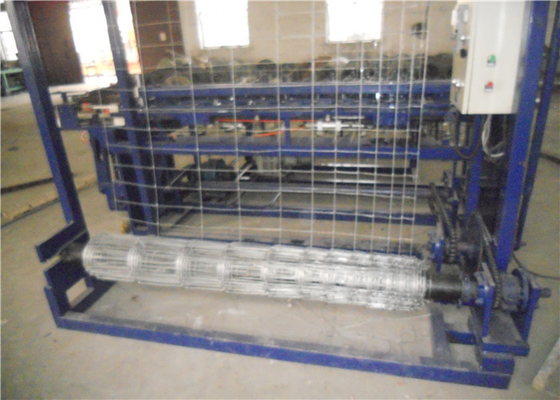

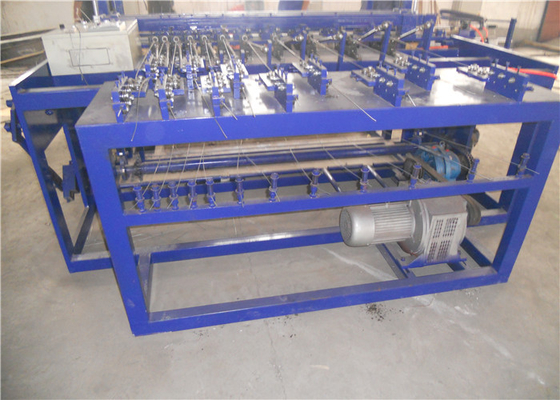

Grassland Fence Machine also called field fence machine, cattle fence machine. The machine use for weaving hinge joint grass land fence. The grass land fence machine could be automatic weaving wrap wire and weft wire. We have spent a lot of time to develop the machine, it has independent intellectual property rights and self-made.
Material:
Hot dip galvanized wire, galvanized wire , stainless steel wire.
Our grassland fence machine have following advantage:
- Use computer control, with advanced technology, modeling novel, high degree of automation, so that easy to operation.
- Machine working stable.
- All spare parts choice best quality and fine processing, that makes machine working more stale and long service life.
- Flexible make different sizes grassland fence netting.
- Finish netting looks flat and beautiful.
Grassland fence machine Technology data:
| ype | 1422mm | 1880mm | 2000mm | 2400mm |
| motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
| Dimension | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
| Efficiency | ≤45row/min | ≤45row/min | ≤45row/min | ≤45row/min |
| Twine diameter | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
| Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
| Voltage | 380v | 380v | 380v | 380v |
| Weight | 3.5T | 3.8T | 4.0T | 4.5T |
| Wrap number | 11 | 13 | 18 | 23 |
| Minimum weft opening number | 2 | 4 | 4 | 6 |
| Weft number | 10 | 12 | 17 | 22 |
| Productivity | 21600row/day (150m/h) | |||
Deer fence machine technology data:
this machine also called grassland fence machine, filed fence machine, it use for make deer fence, cattle fence, grassland fence, field fence. It couldautomatic weaving wrap wire and weft wire together make the netting. New research and development of successful machinery. Breaking the monopoly of European technology.
Material:
Hot dip galvanized wire, galvanized wire , stainless steel wire.
Our deer fence making machine have following advantage:
- Use PLC control, easy to operation.
- High quality spare parts fine processing , that makes machine working stable and long working life.
- Flexible make different sizes netting.
- Netting performance flat and beautiful.
It Widely use in European market, netting wire more solid.Very popular use as deer fence, cattle fence, horse fence, field fence, grassland fence etc.
Deer fence machine technical parameter
| Netting Width | 1422mm | 1652mm | 1880mm | 2000mm | 2400mm |
| Motor | 5.5kw | 7.5Kw | 7.5kw | 7.5kw | 11kw |
| Efficiency | ≤45row/min | ≤45row/min | ≤45row/min | ≤45row/min | ≤45row/min |
| Twine diameter | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
| Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
| Weight | 3.5T | 3.6T | 3.8T | 4.0T | 4.5T |
| Warp number | 11 | 12 | 13 | 18 | 23 |
| Dimension | 2.8*3.2*2.4(m) | 3.0*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
| Productivity | 21600row/day (150m/h) | ||||
